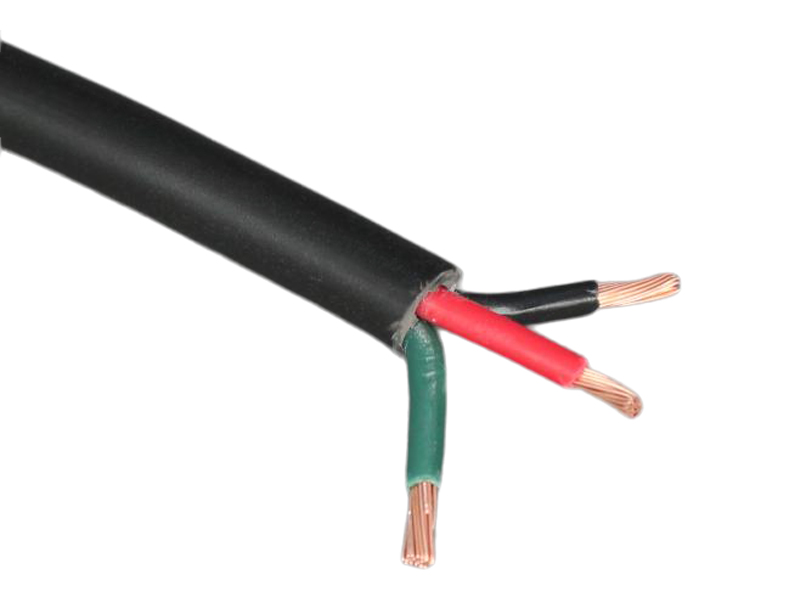

AMC 3 Core Thin Wall Cable - 3 x 25A (2.0mm²)

£2.80

(£2.33 Exc. VAT)

Length

–

Product code

P00680

Brand

AMC

Outer Sheath Shape

Round

Outer Sheath Colour

Black

Cable Size

2mm²

For cable ' By the metre' please enter the number of metres required in the qty box and this will be supplied as a continuous length.

Description

AMC multi-core cable comprising 3 cores of thin wall cable with a PVC outer sheath. Suitable for auto, marine and other low voltage applications.

Thin wall cable is used as standard by OEM manufacturers throughout Europe due to its high performance characteristics.

Specifications

Cores manufactured to: ISO 6722:2006 (Class B) 105°C
Voltage rating: Suitable for 12V & 24V systems (60V max.)
Nominal current rating: 3x25A
No./size of conductors: 3x28/0.30mm
Conductor cross section: 3x2.0mm²
Maximum overall cable diameter: 7.3mm
Conductor material: Plain copper
Core insulation material: PVC (hard grade)
Core insulation colours: Black, Red, Green
Sheath insulation material: PVC
Sheath insulation colour: Black
Working temperature: -15 to +70°C

Part Number : TW03/02.100
