AMC 2 Core Thin Wall Cable (Flat Twin) - 2 x 21A (1.5mm²)

£1.32

(£1.10 Exc. VAT)

(2 Reviews)

Length

–

Product code

P02064

Brand

AMC

Outer Sheath Shape

Flat

Outer Sheath Colour

Black

Cable Size

1.5mm²

For cable ' By the metre' please enter the number of metres required in the qty box and this will be supplied as a continuous length.

Description

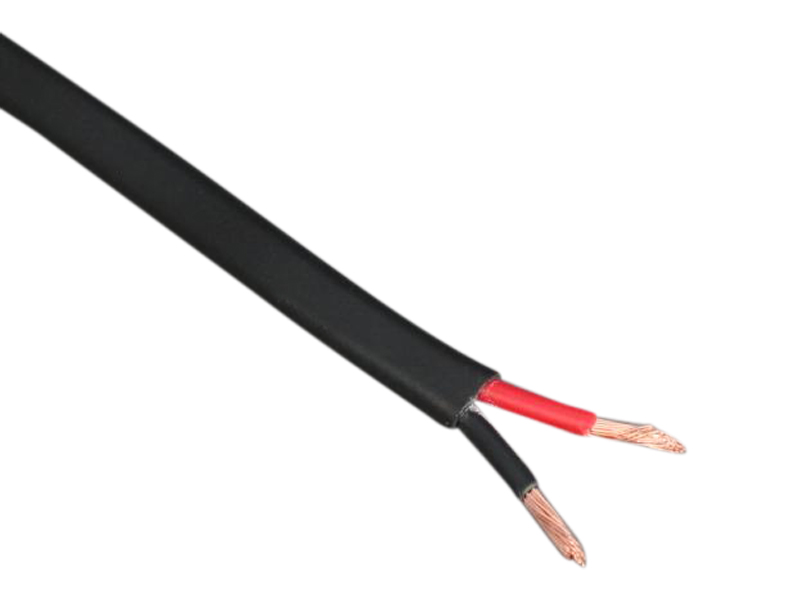

AMC multi-core, flat cable constructed from 2 cores of thin wall cable with a PVC outer sheath. Suitable for low voltage auto and marine applications.

Thin wall cable is used as standard by OEM manufacturers throughout Europe due to its high performance characteristics.

Specifications

Cores manufactured to: ISO 6722:2006 (Class B) 105°C
Voltage rating: Suitable for 12V & 24V systems (60V max.)
Nominal current rating: 2 x 21A
No./size of conductors: 2 x 21/0.30mm
Conductor cross section: 2 x 1.5mm²
Maximum overall cable dimensions: 3.5mm x 5.8mm
Conductor material: Plain copper
Core insulation material: PVC (hard grade)
Core insulation colours: Black, Red
Sheath insulation material: PVC
Sheath insulation colour: Black
Working temperature: -15 to +70°C

Part Number : TW02/05BRB.100
